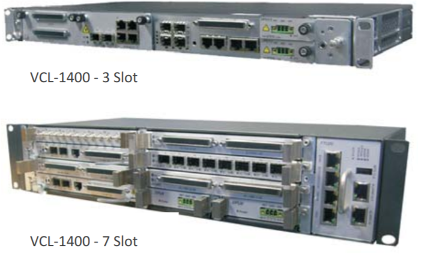

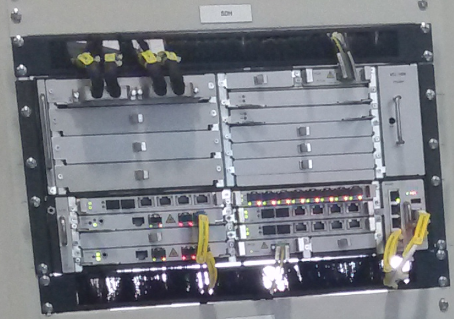

VCL-1400, STM-16 / 64 SDH MULTIPLEXER
PRODUCT OVERVIEW
          The VCL-1400 is an ultra-compact, carrier class, and cost effective family of micro packet optical Equipment (micro POTP) designed to manage and deliver services from the optical core to the access. The VCL-1400 can be configured as a Terminal Multiplexer (TMUX), Add-Drop Multiplexer (ADM) and In-Line Amplifier or as stand-alone Cross-Connect for SDH applications, as well as for Packet and Packet Aggregation applications.


          VCL-1400, STM-1/4/16/64 and GE/10GE platform, has been envisaged to address the growing demand for an ultra-compact STM-1/4/16 /64 Add-drop Multiplexer (ADM) , GE and 10GE CPE and aggregation and provide Ethernet-over-SDH mapping and layer 2 switching functions, including Link Capacity Adjustment Scheme (LCAS) with Virtual Concatenation (VCAT).

Technical Specifications
Switching Fabric

•    TDM Fabric : 2.5G, 5G, 10G, 20G and 60G
•    Fully Lower Order
•    Packet Fabric: 60G


Aggregate Interfaces
•    OC-3, OC-12, OC-48, OC-192
•    1GigE, (SFP based optical / 10 / 100 / 1000Base-T Electrical), 10GigE


Tributary Interfaces
•    T1/DS1, T3/DS3
•    FE/GigE (L1 & L2)
•    OC-3/OC-12/OC-48


Ethernet Switching
•    VLAN Switching (IEEE 802.1Q)
•    Provider Bridges ( 802.1ad)
•    Port Mirroring
•    Ingress Rate Limiting at 64kbps granularity
•    Programmable Committed and Peak Rates
•    Programmable Committed and Peak Burst sizes
•    Egress rate shaping on all ports
•    Optical Ethernet connection: 1000Base-LX/SX and 100Base-FX (Optional)
•    WAN Protocols: PPP, MLPPP
•    Multi Protocol Label Switching - Transport Profile (MPLS-TP), Spanning Tree Protocol (STP) and Link Layer Discovery Protocol (LLDP)
•    8 classes of service as per IEEE 802.1p
•    2 Rate, 3 color marking
•    Circuit Emulation (SATOP & CESoPSN)


Connection Oriented Ethernet
•    MPLS-TP


Network Protection
•    Ethernet Linear Protection Scheme as per ITU-T G.8031
•    Ethernet Ring Protection Scheme as per ITU-T G.8032
•    LCAS protection for Ethernet
•    SNCP, 1+1 MSP for TDM Interfaces


Other Features
•    T1/DS1 Tributary Retiming
•    In-band channel control


Equipment Protection
•    Power Supply Redundancy
•    XC (cross-connect) and Aggregate Card Redundancy
•    T1 tributary card redundancy


Ethernet over SONET Features
•    VCAT as per ITU-T G.707
•    GFP F mapping according to ITU-T G.7041
•    LCAS as per ITU-T G.7042
•    64ms differential delay
•    Graceful degradation in Signal Fail/ Signal Degrade


Operations & Troubleshooting
•    Performance Monitoring as per G.826 and G.784
•    Remote Software Download
•    User configurable for Local / Remote loop
•    CFM as per 802.1ag
•    Performance statistics for Ethernet & VCGs


Management
•    Network Management System (NMS)
•    Northbound SNMPv2 interface
•    End-to-end management across Valiant POTP family
•    Full Remote Management Capability over TCP/IP network
•    Web based Local / Remote management
•    V.24/V.28 modem interface (for remote Management)


Synchronization
•    SyncE, 1588 v2
•    OCn, T1
•    2Mbps BITS Clock
•    2MHz TTL Clock
•    Holdover, Internal


Environmental
•    Operation
o    Operating Temperature: 0ºC to 50ºC.
o    Relative Humidity: 10% to 90%, Non-condensing.
o    ETSI/EN 300386
o    EN 55022 Class A
o    FCC Part 15 Class A
•    Storage and transport
o    Temperature range: - 25°C to 70°C
o    Humidity: max. 95% (non-condensing)


Datasheat :
https://www.oriontelecom.com/brochures/VCL-1400_STM_16_64.pdf
