CXR SDH

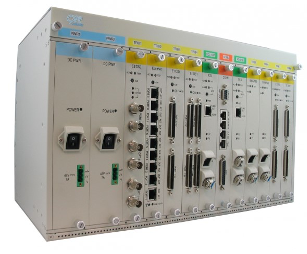

          The HX9416-RA is the last largest configuration of HX9400R series of the ADM/TM SDH multiplexer range from CXR. This configuration with two CC16 CPU/aggregate provides a concentration of traffic over the two STM16 (2,488Gbps) SNCP rings, plus up to 8 STM1 or 2 STM4 sub-rings or STM16 MSP in a single node. It supports the full cross-connect of all VC12, VC3 and VC4 of all interfaces.

This new generation equipment, based on SDH+ technology, is designed to have full non blocking add & drop capabilities of the following tributaries:
• 252 x E1/T1 protected (1+1) or 504 unprotected
• 12 x DS3/E3 protected (1+1)
• 64 x 10/100M Ethernet
• 8 Gigabit Ethernet or
• 32 Gigabit Ethernet with HX9400R-CB-
• 8 x STM1 with MSP (1+1) or
• 8 x STM1 SNCP Ring
• 4 x STM4 with MSP (1+1) or
• 2 x STM4 SNCP Ring
• 1 x STM16 with MSP (1+1) Or a combination of all The modular SDH-ADM node HX9416-RA supports 2 STM16 per card CC16 and 4 STM16 payload per chassis with 2 CC16 card. The selection of the STM1-4-16 is operated by software selection and SFP module exchange .

Features
• 6U height, ETSI shelf
• STM16, STM-4 or STM-1 for the Aggregate Line
• TM, ADM, and XC
• SNCP/UPSR Ring protection
• MESH SNCP
• MSP(1+1) protection for Bus or Point-to-Point
• Full Cross-Connect at VC12/VC11/VC3/VC4 levels
• 4 Tributary groups with 8 slots for General-Purpose Tributary cards
• Hot-Swappable Redundant Power cards DC or AC
• Hot-Swappable Aggregate Line and Tributary cards

Aggregate infrastructures:
• 2 x STM-1/4/16 SNCP ring,
• 2 x STM-1/4/16 MSP (1+1) bus, or
• 1 x STM-1/4/16 SNCP with MSP (1+1) 4 fibers ring

Tributary interface: up to
• 252 x E1/DS1 add/drop with Circuit Pack Protection
• 64 x Ethernet Ports add/drop with Circuit Pack Protection or 8 x Gigabit Ethernet
• 24 x E3/DS3 add/drop
• 4 x STM-4 with MSP (1+1) Protection
• 2 x STM4 SNCP ring
• 8 x STM1 with MSP(1+1)
• 8 x STM1 SNCP Ring
• 1 x STM16 with MSP(1+1)

 Other
• External/Internal/Line timing source
• DTMF Engineering Order-Wire using VoIP phone
• Full Front Access
• TMN management (CXR-INMS) with full FCAPS and end-to-end circuit management
• Supports Ethernet over SDH:
• GFP, VCAT w or w/o LCAS or
• BCP-PPP PPPoS Layer 2 RFC2615
